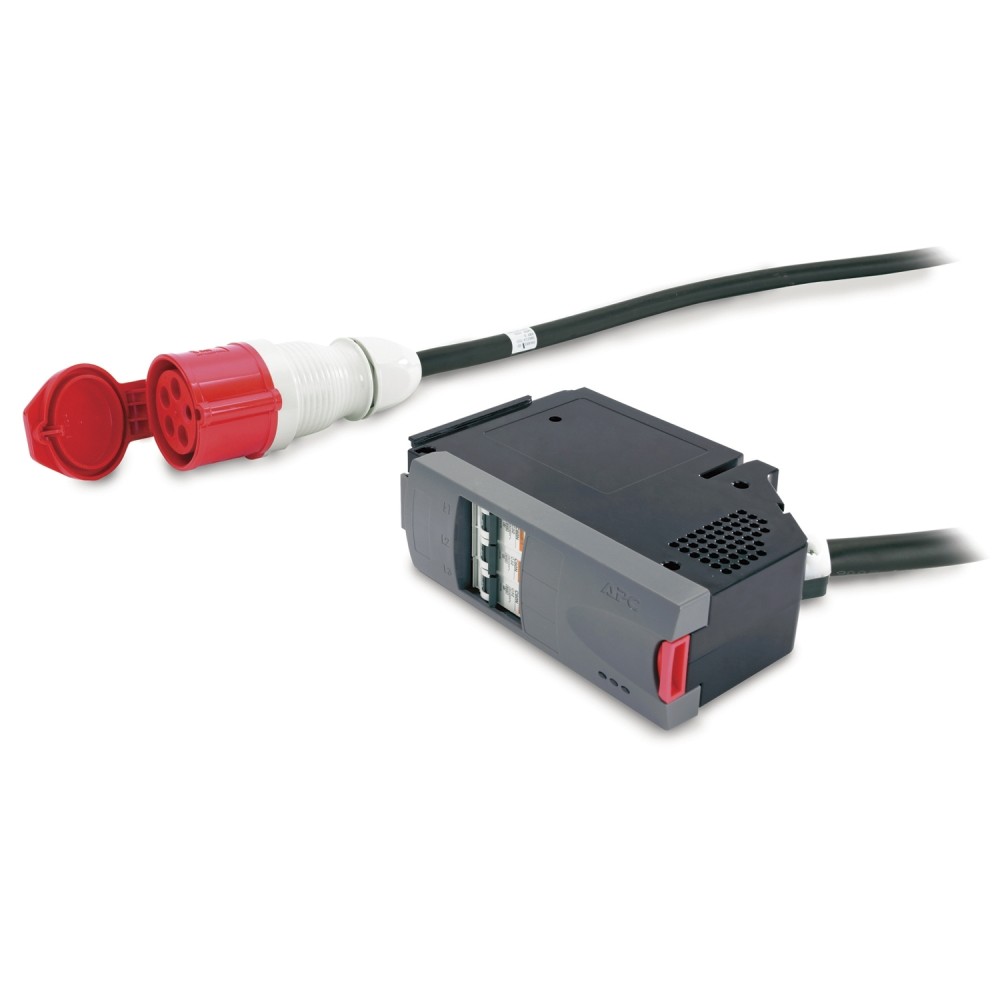

APC PDM3520IEC309 power distribution unit (PDU) 1 AC outlet(s) Black, Grey

APC PDM3520IEC309 power distribution unit (PDU) 1 AC outlet(s) Black, Grey

PDM3520IEC309-380
APC PDM3520IEC309. PDU types: Modular, Monitored, Type: Three-phase, Product colour: Black, Grey. AC outlets quantity: 1 AC outlet(s), Output connections: 1 x IEC 309. Cable length: 3.8 m. Nominal input voltage: 240 V, AC input frequency: 60 Hz, Nominal output voltage: 230 V. Compliance certificates: RoHS, Certification: UL
Hurry! only 10 items left in stock.
$794.06
Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

APC IT Power Distribution Module 3 Pole 5 Wire 63A IEC309 1040cmA touch-safe Power Distribution Module (including circuit breaker, power cord, power connection, and circuit monitoring) that eliminates the need for hot work or shutdowns during expansion of the power distribution system.Built-in Web/SNMP managementFull-featured management via a Web browser as well as comprehensive management from a Network Management System.Low Cost Power DistributionProvides a number of outlets to bring power to rack equipment at an affordable price.Smallest footprintMinimizes your real estate expensesSystem mobilityPDU equipment can easily be relocated to accommodate a changing data center environment.Local and web-based monitoringStatus available to customers both in the data center and remotelyMultiple distribution optionsSuperior design flexibility enables a wide range of customer requirements to be addressed.LED status indicatorsQuickly understand unit and power status with visual indicators.Modular Power Accessories Features & BenefitsSafetyEnhance user safety with isolation at all touch points and with positive locking mechanisms that reduce the risk of accidental disconnectionManageabilityPower monitoringMeasure and monitor power consumption and usage with branch circuit monitoring and output metering, which are included at no extra costQuick status information LEDsAccess status information about the performance of the Power Distribution ModuleConvenienceToolless installation of breakersInstall factory-assembled Power Distribution Modules in under ten minutes - no tools are requiredGlobal product offeringStandardization of the power distribution system across all corporate locations is easy - a variety of 1-phase and 3-phase Power Distribution Modules address the unique power requirements of data centers around the world

Brand: APC

Model: PDM3520IEC309-380

Apc
: PDM3520IEC309-380
: 10 Items
Hurry! only 10 items left in stock.

Data sheet

Type
Three-phase
Width
444 mm
Height
127 mm
Product colour
Black, Grey
AC input frequency
60 Hz
Certification
UL
Depth
406 mm
Package weight
5.55 kg
Weight
5 kg
Package width
444 mm
Package depth
406 mm
Cable length
3.8 m
Package height
127 mm
LED indicators
Yes
Compliance certificates
RoHS
AC outlets quantity
1 AC outlet(s)
PDU types
Modular, Monitored
Nominal input voltage
240 V
Nominal output voltage
230 V
Maximum input current per phase
20 A
Maximum total current draw per phase
20 A
Output connections
1 x IEC 309

Specific References

UPC
731304265382
EAN13
0731304265382
