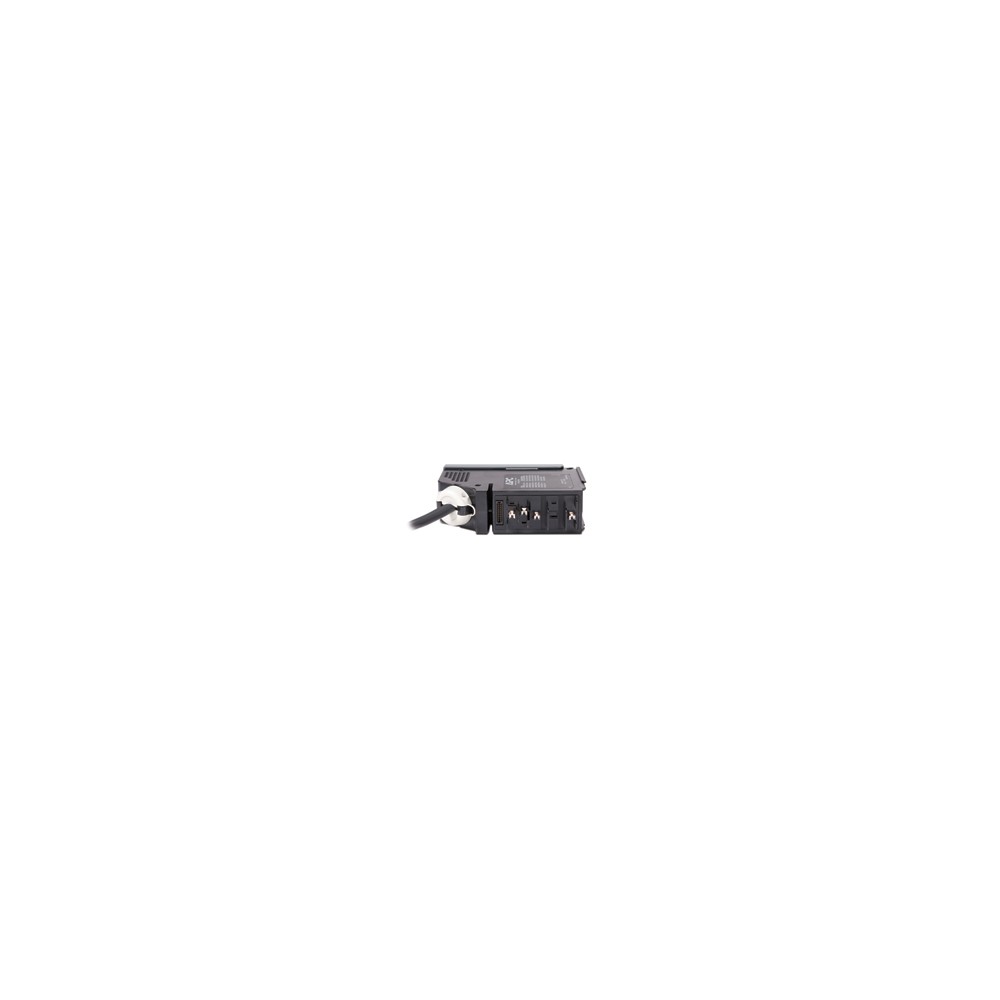

APC IT Power Distribution Module 2 Pole 3 Wire 30A L3-L1 L6-30 1200cm power distribution unit (PDU) 1 AC outlet(s) Black

APC IT Power Distribution Module 2 Pole 3 Wire 30A L3-L1 L6-30 1200cm power distribution unit (PDU) 1 AC outlet(s) Black

PDM2330L6-12-500
APC IT Power Distribution Module 2 Pole 3 Wire 30A L3-L1 L6-30 1200cm. PDU types: Metered, Monitored, Product colour: Black. AC outlets quantity: 1 AC outlet(s), AC outlet types: NEMA L6-30R. Cable length: 5 m. Nominal input voltage: 208 V, AC input frequency: 60 Hz, Nominal output voltage: 208 V. Compliance certificates: RoHS, Certification: UL
Hurry! only 10 items left in stock.
$736.17
Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

A touch-safe Power Distribution Module (including circuit breaker, power cord, power connection, and circuit monitoring) that eliminates the need for hot work or shutdowns during expansion of the power distribution system.Local and web-based monitoringStatus available to customers both in the data center and remotelyMultiple distribution optionsSuperior design flexibility enables a wide range of customer requirements to be addressed.Modular Power Accessories Features & BenefitsSafetyEnhance user safety with isolation at all touch points and with positive locking mechanisms that reduce the risk of accidental disconnectionManageabilityPower monitoringMeasure and monitor power consumption and usage with branch circuit monitoring and output metering, which are included at no extra costQuick status information LEDsAccess status information about the performance of the Power Distribution ModuleConvenienceToolless installation of breakersInstall factory-assembled Power Distribution Modules in under ten minutes - no tools are requiredGlobal product offeringStandardization of the power distribution system across all corporate locations is easy - a variety of 1-phase and 3-phase Power Distribution Modules address the unique power requirements of data centers around the world

Brand: APC

Model: PDM2330L6-12-500

Apc
: PDM2330L6-12-500
: 10 Items
Hurry! only 10 items left in stock.

Data sheet

Width
444 mm
Height
127 mm
Operating temperature (T-T)
0 - 30 °C
Storage temperature (T-T)
-15 - 40 °C
Operating relative humidity (H-H)
0 - 95%
Product colour
Black
AC input frequency
60 Hz
Certification
UL
Depth
406 mm
Package weight
5.2 kg
Weight
4.29 kg
Package width
444 mm
Cable length
5 m
LED indicators
Yes
Operating altitude
0 - 3000 m
Compliance certificates
RoHS
AC outlet types
NEMA L6-30R
AC outlets quantity
1 AC outlet(s)
Storage relative humidity (H-H)
0 - 95%
PDU types
Metered, Monitored
Nominal input voltage
208 V
Nominal output voltage
208 V
Load capacity
30 VA
Maximum input current per phase
30 A
Non-operating altitude
0 - 4500 m

Specific References

UPC
731304286004
EAN13
0731304286004
