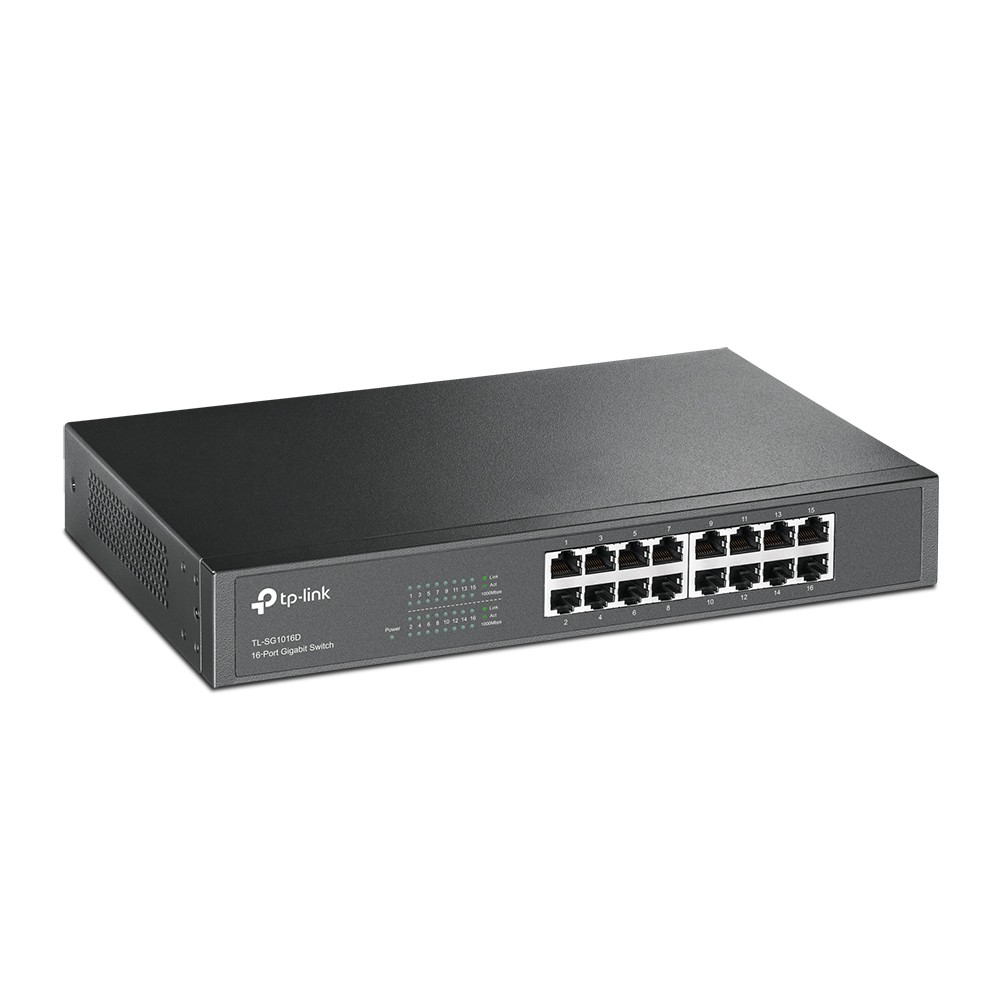

TP-Link 16-Port Gigabit Desktop/Rackmount Network Switch

TP-Link 16-Port Gigabit Desktop/Rackmount Network Switch

TL-SG1016D V7
TP-Link 16-Port Gigabit Desktop/Rackmount Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: AC-in jack. Rack mounting
Hurry! only 10 items left in stock.
$63.77
Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Key Features:

  • Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 16
  • Cat3, Cat4, Cat5, Cat5e 10BASE-T, 100BASE-TX, 1000BASE-TX, 1000BASE-T
  • MAC address table: 8000 entries Switching capacity: 32 Gbit/s
  • Rack mounting Stackable
  • AC Power supply included
  • 16 10/100/1000Mbps ports
  • Innovative energy-efficient technology saves power consumption

Product Description:

What This Product DoesThe TL-SG1016D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.TP-LINK Green TechnologyThis new generation TL-SG1016D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.High PerformanceAll 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra­ffic congestion and make The TL-SG1016D work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.Easy to UseThe auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

Brand: TP-Link

Model: TL-SG1016D V7

Tp Link
: TL-SG1016D V7
: 10 Items
Hurry! only 10 items left in stock.

Data sheet

Product colour
Black
Networking standards
IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Cable types supported
Cat3, Cat4, Cat5, Cat5e
Rack mounting
Yes
LED indicators
Yes
Supported network protocols
CSMA/CD, TCP/IP
Auto MDI/MDI-X
Yes
Switch type
Unmanaged
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Full duplex
Yes
Flow control support
Yes
Auto-negotiation
Yes
Compatible operating systems
Microsoft Windows 2000/XP/2003/Vista/2008/7/2012/8/10 MacOS NetWare UNIX Linux
10G support
No
Switching capacity
32 Gbit/s
Forwarding rate
23.8 Mpps
MAC address table
8000 entries
Jumbo frames support
Yes
Jumbo frames
10000
Gigabit Ethernet (copper) ports quantity
16
Power connector
AC-in jack
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-TX, 1000BASE-T
Store-and-forward
Yes
Stackable
Yes

Specific References

UPC
845973020613
EAN13
0845973020613
