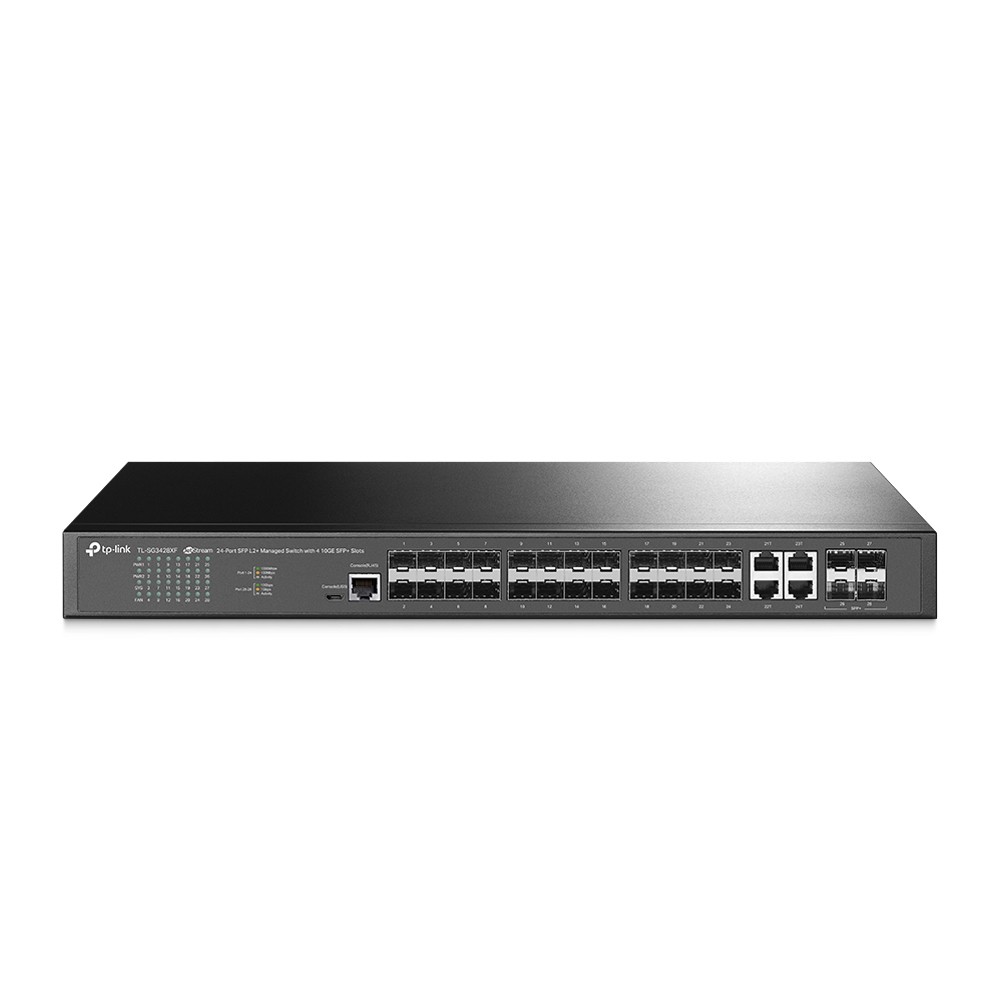

TP-Link JetStream 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots

TP-Link JetStream 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots

TL-SG3428XF
TP-Link JetStream 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots. Switch type: Managed, Switch layer: L2+. Console port: RJ-45/Micro-USB. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.11d, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae,.... Power connector: AC-in jack. Rack mounting, Form factor: 1U
Hurry! only 3 items left in stock.
$626.13
Quantity

Last items in stock
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Key Features:

  • Managed L2+ Web-based management SNMPv1/v2c/v3, SNTP
  • Quality of Service (QoS) support Configuring Location Settings (CLI)
  • Console port: RJ-45/Micro-USB
  • 10G support
  • MAC address table: 16000 entries Switching capacity: 128 Gbit/s
  • Access Control List (ACL)
  • 1U Rack mounting
  • AC Power supply included

Product Description:

10G Uplink Managed Switch with Full Fiber PortsJetStream 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots10G Lightning-Fast Uplink Connection4× 10 Gbps SFP+ Slots for High-Bandwidth Connectivity Gigabit Fiber Connections20× gigabit SFP ports and 4× SFP/RJ45 Combo Ports Offer Flexible and Reliable Connections Centralized Cloud ManagementSDN Solutions Integration for a Highly Efficient NetworkAdvanced L2+ FeaturesStatic Routing, IGMP Snooping, 802.1Q VLAN and MoreFull Fiber Switch with Lightning-Fast 10GBuild and expand your lightning-fast network with TP-Link TL-SG3428XF—a fully managed switch with 20× gigabit SFP ports, 4× gigabit SFP/RJ45 combo ports, and 4× 10G SFP+ ports. Being ideal for any business network, it meets and surpasses the needs for high-speed, reliable, and safe enterprise networks.Seamless Integration to Omada Cloud SDNSoftware Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.Dual Redundant Power SuppliesTwo power supplies back each other up and makes an ideal choice for reliable networking architecture.Advanced L3 FeaturesAn abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.Secure NetworkingOur high-quality security features defend against a range of network threats. They include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping. An integrated list of common DoS attacks makes it easier to prevent them. The Access Control Lists (ACL, L2 to L4) restrict access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. User access to the network can be controlled through 802.1X authentication to grant access according to valid user credentials.Enterprise Level Features802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control are supported by the lineup of innovative L2+ features. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to appropriate subscribers and reduces unnecessary traffic. IGMP throttling & filtering restrict subscribers at the port level to prevent unauthorized multicast access. Static Routing segments the network to route traffic efficiently.Advanced Quality of Service (QoS)Voice and video traffic and be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS, voice and video services remain smooth, even in low bandwidth situations.ISP Features**Internet Service Providers (ISPs) get the support they need with features including sFlow, QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication. 802.3ah OAM and Device Link Detection Protocol (DLDP) provide straightforward monitoring and troubleshooting of Ethernet links across the entire network.IPv6 SupportAn enormous variety of IPv6 functions guarantees your network will be ready for the Next Generation Network (NGN) without needing to upgrade your hardware. Take advantage of features to enhance your network environment, including Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover.

Brand: TP-Link

Model: TL-SG3428XF

Tp Link
: TL-SG3428XF
: 3 Items
Hurry! only 3 items left in stock.

Data sheet

Networking standards
IEEE 802.11d, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Quality of Service (QoS) support
Yes
Console port
RJ-45/Micro-USB
MIB support
RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925
Web-based management
Yes
Fiber ports quantity
20
Fiber optic connector
SFP, SFP+
Switch type
Managed
Switch layer
L2+
Basic switching RJ-45 Ethernet ports type
No
Combo SFP ports quantity
4
Port mirroring
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
SFP+ module slots quantity
4
10G support
Yes
Cloud-managed
Yes
ARP inspection
Yes
Configuring Location Settings (CLI)
Yes
System event log
Yes
Power connector
AC-in jack
IP routing
Yes
Policy-based routing
Yes
Routing entries
512

Specific References

UPC
840030708213
EAN13
0840030708213
