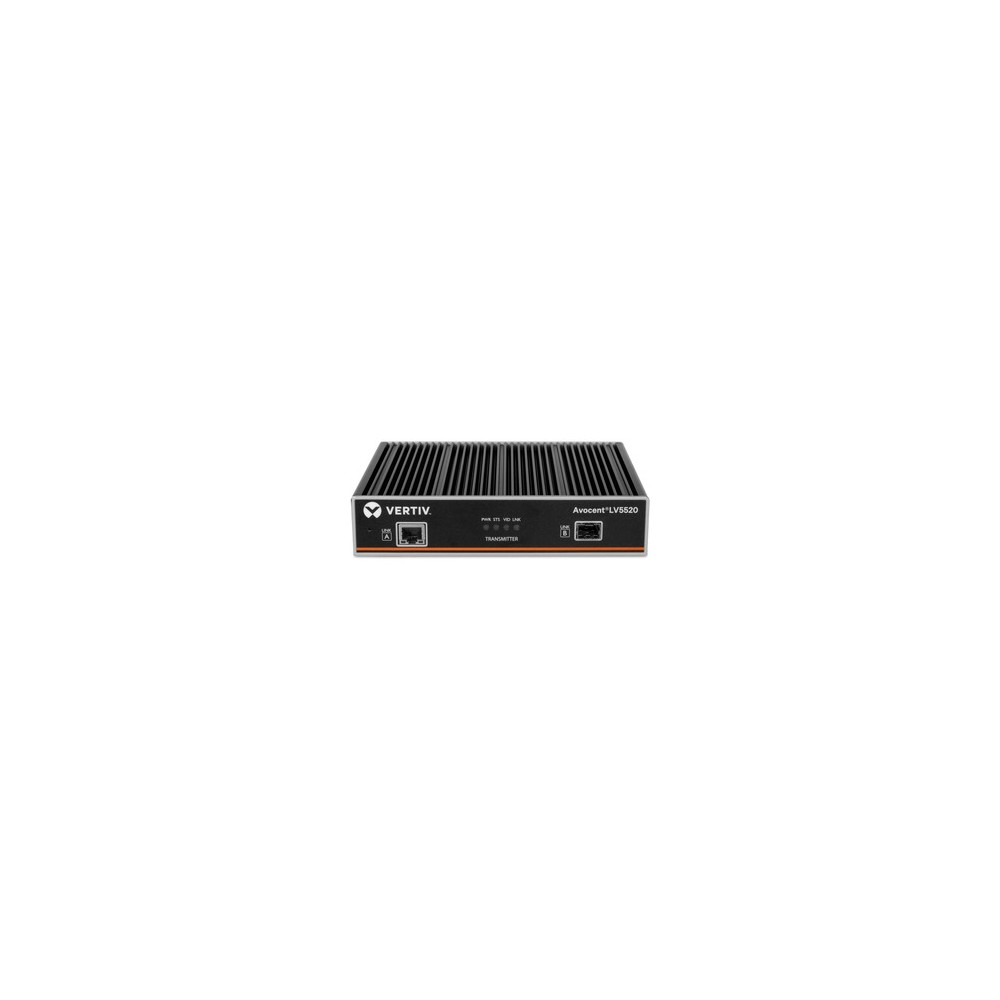

Vertiv Avocent LV5520T KVM extender Transmitter

Vertiv Avocent LV5520T KVM extender Transmitter

Vertiv
LV5520T-400
Vertiv Avocent LV5520T. Type: Transmitter, Connectivity technology: Wired, Maximum transfer distance: 4000 m. Transmitter video port type: DisplayPort, Transmitter local keyboard/mouse port type: USB. USB port type: USB Type-B. AC input voltage: 100 - 240 V, AC input frequency: 47/63 Hz, Power consumption (receiver) (max): 18 W. Transmitter width: 18.6 cm, Transmitter depth: 13.7 cm, Transmitter height: 3.91 cm
Out of Stock
$1,997.10
Quantity

Out-of-Stock
Add to Compare
Add to Wishlist
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Key Features:

  • Transmitter
  • Wired Maximum transfer distance: 4000 m
  • Maximum digital resolution: 4096 x 2160 pixels
  • Transmitter video port type: DisplayPort Transmitter local keyboard/mouse port type: USB
  • PC Audio in PC Audio out
  • Power consumption (receiver) (max): 18 W
  • Delivers seamless KVM control and 4k video transmission

Product Description:

The Vertiv Avocent LongView 5520 Transmitter (LV5520T) is the latest in the Avocent high-performance KVM Extender family of products. The LV5520T comes equipped with dependable performance, along with intelligent EDID management. Coupled with the Avocent LV5520R, the LV5520T is a point-to-point high performance KVM extender that provides 24-bit color graphics over dual heads up to 4K @ 60Hz. Increase business security with signed upgrade files and firmware updates from a single USB flash drive. It provides users with real-time access, high resolution clarity, and local console video output. The LV5520T connects either via a copper or fiber link and comes with a LED indicator that shows the quality of the link connection.

Brand: Vertiv

Model: LV5520T-400

Vertiv
: LV5520T-400
Out of Stock

Data sheet

Type
Transmitter
Connectivity technology
Wired
USB 2.0 ports quantity
4
Product colour
Black
AC input voltage
100 - 240 V
AC input frequency
47/63 Hz
Certification
CE, FCC
Maximum transfer distance
4000 m
Cable types supported
Fiber, Cat5e, Cat6e
Rack mounting
Yes
Maximum digital resolution
4096 x 2160 pixels
Supported resolutions
CE, FCC
LED indicators
Yes
Transmitter video port type
DisplayPort
Transmitter local keyboard/mouse port type
USB
RJ-45 ports quantity (transmitter)
1
USB port type
USB Type-B
Installed SFP+ modules quantity
1
PC Audio in
Yes
PC Audio out
Yes
Power consumption (receiver) (max)
18 W
Transmitter width
18.6 cm
Transmitter depth
13.7 cm
Transmitter height
3.91 cm
Transmitter weight
1.28 kg
