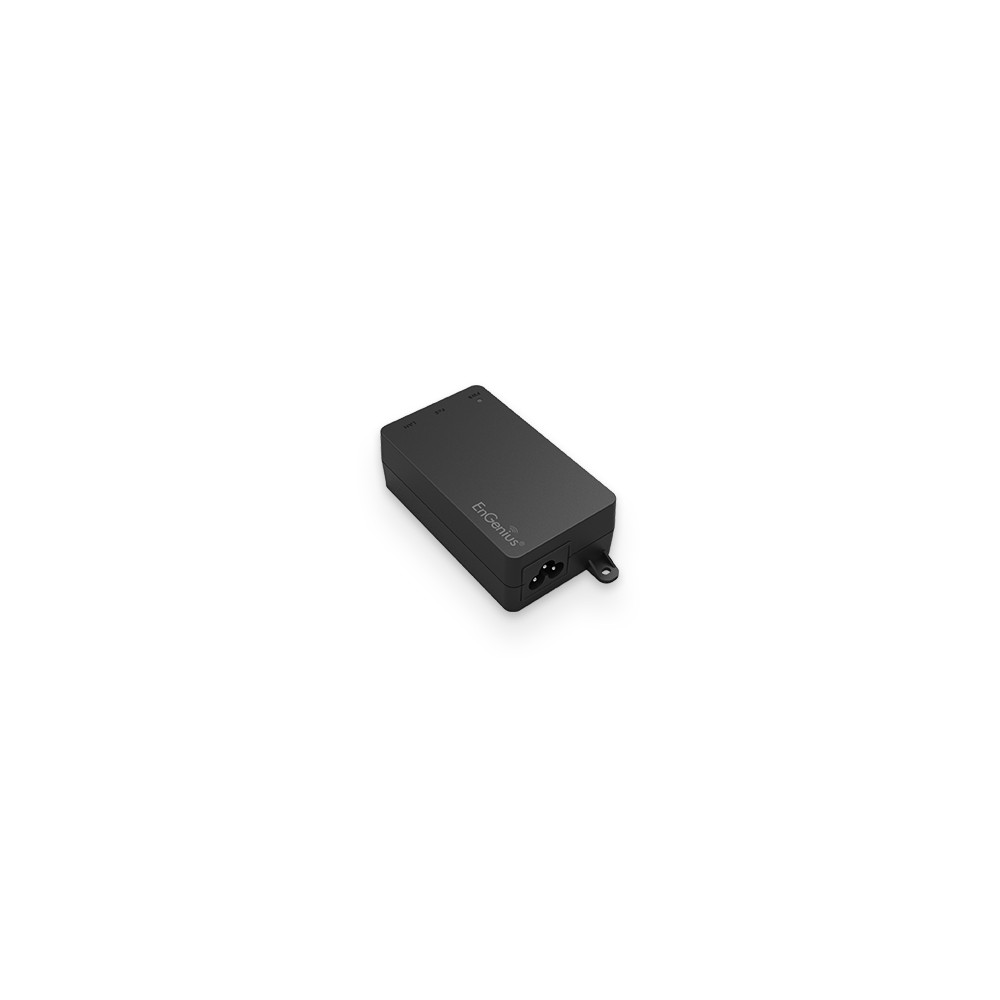

EnGenius 60W 2.5 Gigabit 802.3 bt/at/af Power-over-Ethernet Adapter

Name: EnGenius 60W 2.5 Gigabit 802.3 bt/at/af Power-over-Ethernet Adapter
Brand: Engenius
SKU: EPA5060HBT
Price: 59.75 CAD
Availability: InStock

Brand :

Reference : EPA5060HBT

EnGenius 60W 2.5 Gigabit 802.3 bt/at/af Power-over-Ethernet Adapter. Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000,2500 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. Product colour: Black, LED indicators: Power, Pin assignment & polarity: Pin4(Vdc+)&Pin5(Vdc+); Pin7(Vdc-)&Pin8(Vdc-); Pin1(Rx+)&Pin2(Rx-); Pin3(Tx+)&Pin6(Tx-). Output power: 60 W, Input voltage: 100 - 240 V, Input frequency: 50 - 60 Hz. Compliance certificates: CB, CE, Federal Communications Commission (FCC), UL. Width: 100 mm, Depth: 58.4 mm, Height: 33.4 mm

Hurry! only 10 items left in stock.

$59.75

Quantity

Add to Compare

Add to Wishlist

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Key Features:

10,100,1000,2500 Mbit/s
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
2.5 Gigabit Ethernet in & out ports allow connection of high-speed devices
Delivers both data and power to PoE-compatible devices
Optimal port design for easy mounting/positioning
Extends power to unwired areas up to 328-ft./100m
Disconnect, short-circuit & surge protection assure secure, reliable connections

Product Description:

The EPA5060HBT 2.5 Gigabit Ethernet IEEE 802.3bt standard Power-over-Ethernet adapter supports high-speed data and up to 60 Watts/54V of power to compliant devices such as APs, IP cameras or VoIP phones to 100 meters away over a single cable. A compact, optimal port design provides easy, precise installation, while built-in power surge protection preserves valuable equipment.

Brand: EnGenius

Model: EPA5060HBT

Brand Engenius

Reference : EPA5060HBT

In stock : 10 Items

Hurry! only 10 items left in stock.

Data sheet

Width: 100 mm
Height: 33.4 mm
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 70 °C
Product colour: Black
Depth: 58.4 mm
Weight: 198 g
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
LED indicators: Power
Output power: 60 W
Input frequency: 50 - 60 Hz
Power protection features: Over current, Over voltage, Short circuit
Compliance certificates: CB, CE, Federal Communications Commission (FCC), UL
Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet
Input current: 1.12A @ 120V AC, 0.75A @ 240V AC
Warranty period: 1 year(s)
Input voltage: 100 - 240 V
Wall mountable: Yes
Pin assignment & polarity: Pin4(Vdc+)&Pin5(Vdc+), Pin7(Vdc-)&Pin8(Vdc-), Pin1(Rx+)&Pin2(Rx-), Pin3(Tx+)&Pin6(Tx-)
Surge protection voltage: 4 kV
