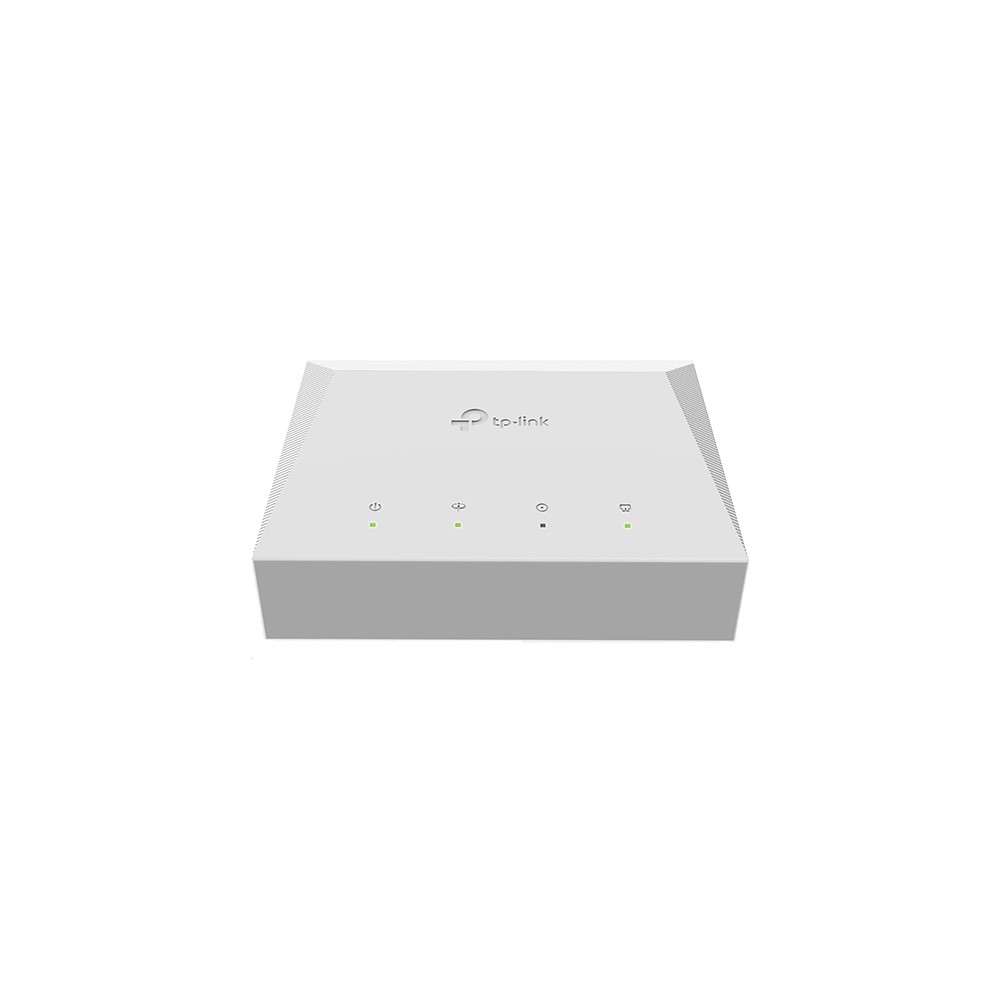

TP-Link 1-Port Gigabit XPON Terminal

TP-Link 1-Port Gigabit XPON Terminal

XZ000-G7
TP-Link 1-Port Gigabit XPON Terminal. Product type: Optical network terminal (ONT), Product colour: White. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3u, ITU standards: G.984.1, G.984.3, G.984.4, Ethernet LAN data rates: 10,100,1000 Mbit/s. Fiber optic connector: SC/APC. Output voltage: 9 V, Output current: 0.6 A. Compliance certificates: RoHS
Hurry! only 10 items left in stock.
$22.66
Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Key Features:

  • Gigabit Internet Access: One PON port and one gigabit LAN port provide fast transfer speeds*
  • XPON Support: EPON + GPON dual mode offers greater flexibilty for fiber internet access
  • Durability: Intelligent power-saving method
  • Remote Management: Supports the OMCI (ONU Management Control Interface) protocol for centralized configuration and management

Product Description:

1-PortGigabit XPON TerminalHigh-Speed GPON ServiceCompliant with the ITU-T G.984 GPON standards, XZ000-G7 supports maximum data rates of upto 2.488 Gbps downstream, 1.244 Gbps upstream.MakeFiber-to-the-Home YoursTP-Link’s XZ000-G7 is a GPON (Gigabit Passive Optical Network) + EPON (Ethernet Passive Optical Network) combo terminal, ideal for Fiber-to-the-Home solution.Gigabit Internet AccessOne PON port and one Gigabit Ethernet port, XZ000-G7 provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences.Ease of UseQuick and hassle-free installation

Brand: TP-Link

Model: XZ000-G7

Tp Link
: XZ000-G7
: 10 Items
Hurry! only 10 items left in stock.

Data sheet

Width
95 mm
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 60 °C
Operating relative humidity (H-H)
10 - 90%
Product colour
White
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3u
Quality of Service (QoS) support
Yes
LED indicators
Yes
Compliance certificates
RoHS
Storage relative humidity (H-H)
5 - 90%
Ethernet LAN (RJ-45) ports
1
Product type
Optical network terminal (ONT)
Output voltage
9 V
Output current
0.6 A
Web-based management
Yes
Sustainability compliance
Yes
Fiber ports quantity
1
Fiber optic connector
SC/APC
Reset button
Yes
DC-in jack
Yes
Transmission distance (max)
20 km
Upstream data rate
1244 Mbit/s
Downstream data rate
2488 Mbit/s
ITU standards
G.984.1, G.984.3, G.984.4

Specific References

UPC
840030708442
EAN13
0840030708442
