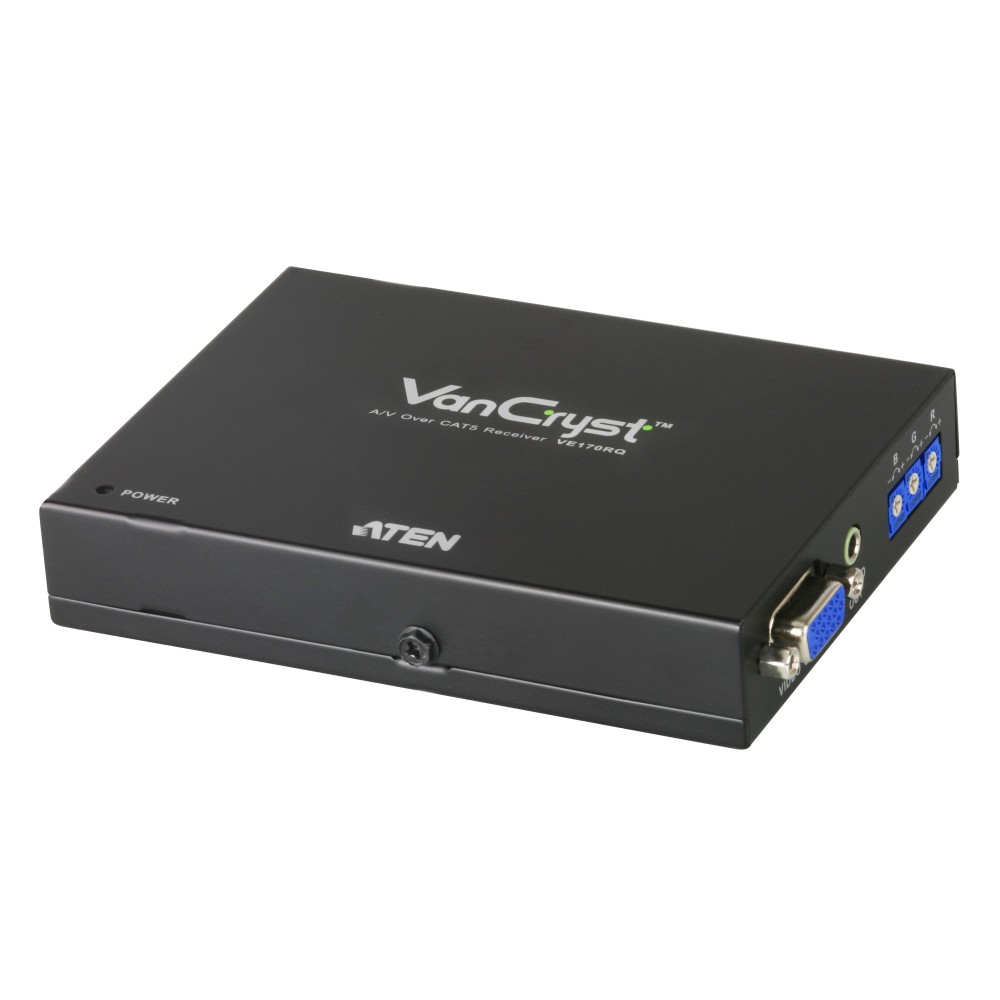

ATEN VE170RQ AV extender AV receiver Black

ATEN VE170RQ AV extender AV receiver Black

VE170RQ
ATEN VE170RQ. Type: AV receiver, Maximum resolution: 1920 x 1200 pixels, Cable types supported: Cat5. Operating voltage: 5.3 V. Dimensions (WxDxH): 85.6 x 119.5 x 22.6 mm, Weight: 250 g
Hurry! only 10 items left in stock.
$233.21
Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Key Features:

  • AV receiver 1920 x 1200 pixels Black
  • Maximum transfer distance: 300 m
  • DC-in jack
  • Long distance transmission up to 300 m
  • Deskew Function – allows you to synchronize the time delay of RGB signals to compensate for distance
  • Superior video quality -
  • 1920x1200 @ 60Hz (150 m);1280x1024 @ 60Hz (300 m)
  • Audio enabled (mono)

Product Description:

The VE170RQ A/V Over Cat 5 Receiver connects to a transmitter* to extend signals up to 300m from the source using a Cat 5e cable. It is a cost-effective and efficient solution for sending and receiving high quality audio and video content. The VE170RQ features ATEN patented Deskew technology, which supports the manual synchronization of RGB signals and corrects color phase and timing errors that occur over large distances.Compatible Transmitter Unit: VE170T A/V Over Cat 5 Transmitter VS1204T A/V Over Cat 5 Transmitter VS1208T A/V Over Cat 5 Transmitter

Brand: ATEN

Model: VE170RQ

Aten
: VE170RQ
: 10 Items
Hurry! only 10 items left in stock.

Data sheet

Type
AV receiver
Operating voltage
5.3 V
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Maximum resolution
1920 x 1200 pixels
Product colour
Black
Manual
Yes
Weight
250 g
Maximum transfer distance
300 m
Cable types supported
Cat5
LED indicators
Yes
Supported graphics resolutions
1280 x 1024 (SXGA), 1920 x 1200 (WUXGA)
Dimensions (WxDxH)
85.6 x 119.5 x 22.6 mm
VGA (D-Sub) ports quantity
1
DC-in jack
Yes
External power adapter
Yes
Audio system
Mono
RJ-45 input ports
1
VGA (D-Sub) output ports
1
Audio output
1

Specific References

UPC
672792002618
EAN13
0672792002618
