EnGenius SFP2185-05A network transceiver module Fiber optic 1250 Mbit/s SFP+ 850 nm

EnGenius SFP2185-05A network transceiver module Fiber optic 1250 Mbit/s SFP+ 850 nm

SFP2185-05A
EnGenius SFP2185-05A. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP+. Product colour: Grey. Input voltage: 3.15 - 3.45 V, Maximum voltage: 3.45 V. Compliance certificates: RoHS. Width: 14.7 mm, Depth: 55.9 mm, Height: 12.4 mm
Hurry! only 10 items left in stock.
$56.83
Quantity

Add to Compare
Add to Wishlist
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Key Features:

  • SFP+ Fiber optic 1250 Mbit/s
  • 1.25 Gigabit Ethernet Wavelength: 850 nm
  • Hot-swap
  • Input voltage: 3.15 - 3.45 V
  • Hot-swappable LC Duplex connector
  • 850nm VCSEL
  • Data Rate: 1.25Gbps
  • Small Form Factor Pluggable MSA Compliant

Product Description:

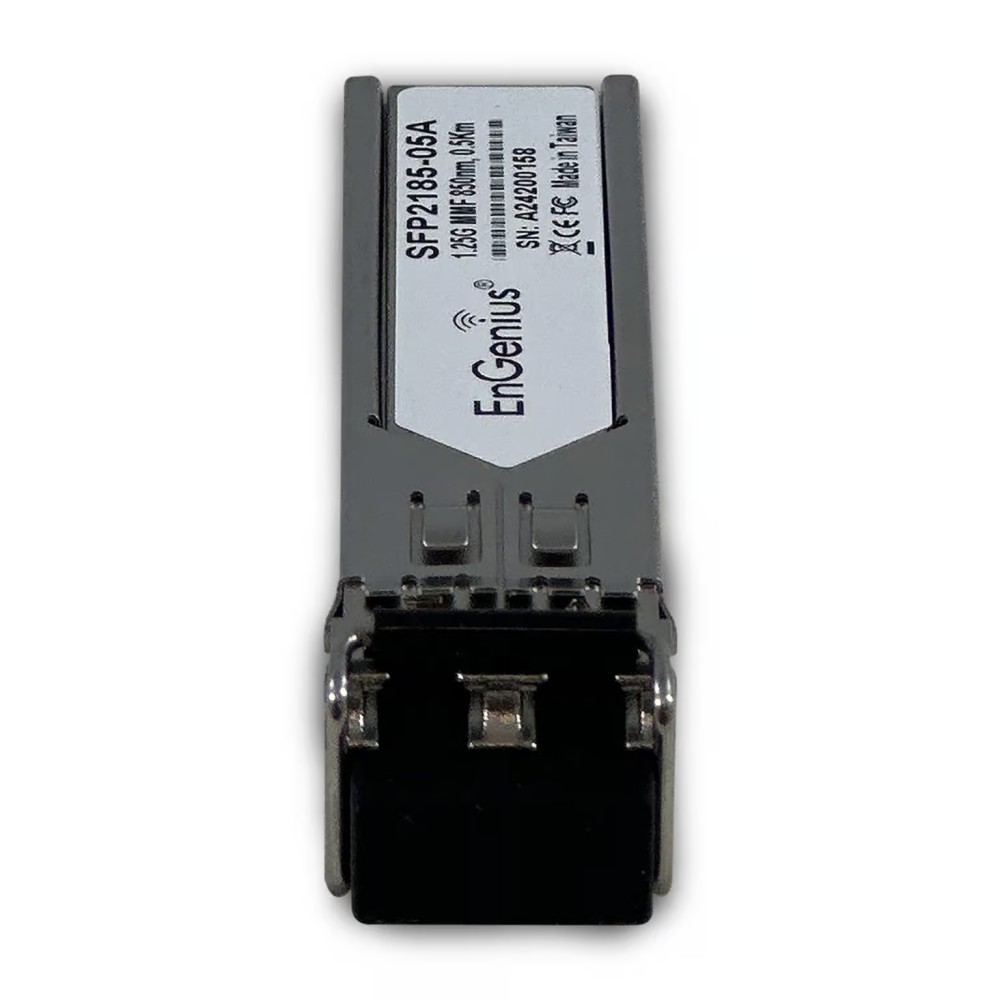

The EnGenius SFP2185-05A is a high performance and cost-effective multi-mode SFP transceiver. Intended for use with Gigabit Ethernet, provides up to 1.25 Gbps serial optical data transfer rates on single duplex fiber core. It can reach a distance of up to 500 meters if used with 50-micron fiber cables.

Brand: EnGenius

Model: SFP2185-05A

Engenius
: SFP2185-05A
: 10 Items
Hurry! only 10 items left in stock.

Data sheet

Width
14.7 mm
Height
12.4 mm
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Ethernet LAN
Yes
Product colour
Grey
Depth
55.9 mm
Weight
25 g
Hot-swap
Yes
Maximum data transfer rate
1250 Mbit/s
Networking standards
IEEE 802.3az
Maximum transfer distance
20000 m
Compliance certificates
RoHS
Ethernet interface type
1.25 Gigabit Ethernet
Interface type
SFP+
Fiber optic connector
LC
SFP transceiver type
Fiber optic
Multi-mode fiber (MMF) supported
Yes
Input voltage
3.15 - 3.45 V
Wavelength
850 nm
Maximum voltage
3.45 V

Specific References

UPC
655216010512
EAN13
0655216010512
