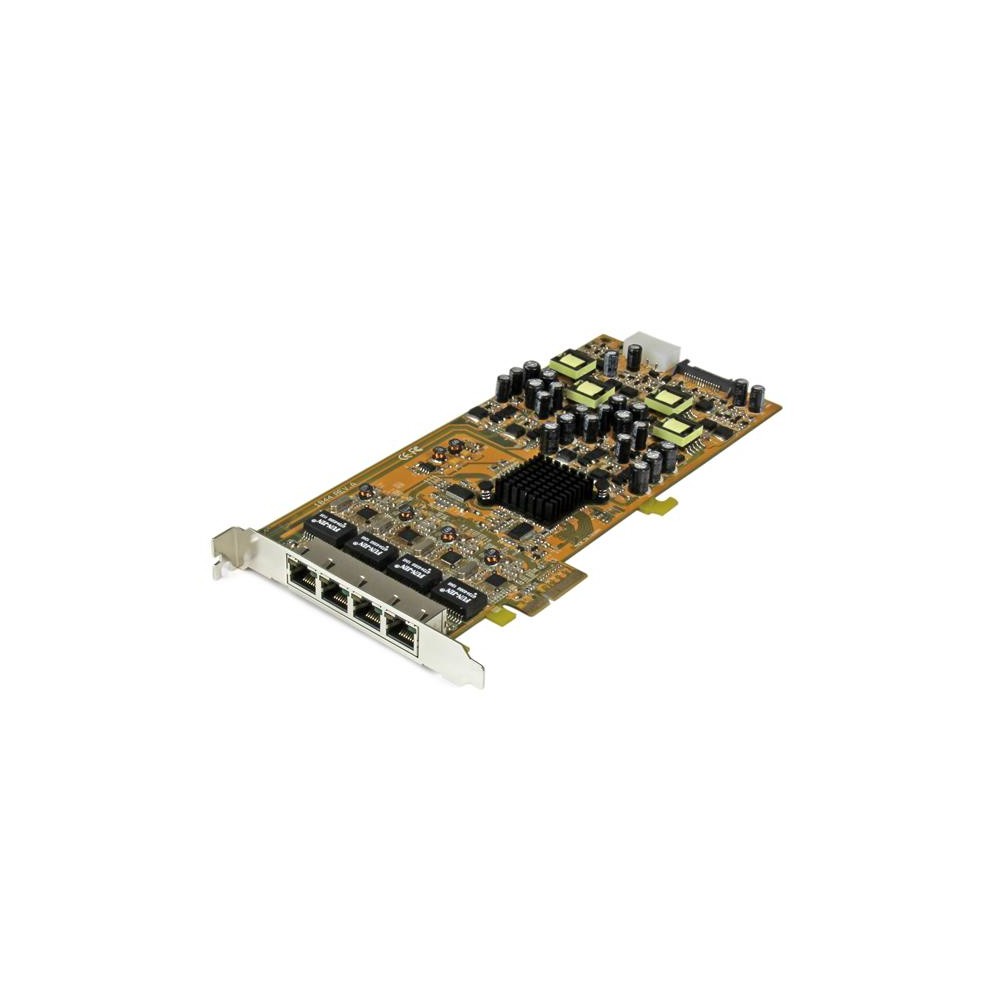

StarTech.com 4 Port Gigabit Power over Ethernet PCIe Network Card - PSE / PoE PCI Express NIC

StarTech.com 4 Port Gigabit Power over Ethernet PCIe Network Card - PSE / PoE PCI Express NIC

ST4000PEXPSE
StarTech.com 4 Port Gigabit Power over Ethernet PCIe Network Card - PSE / PoE PCI Express NIC. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2000 Mbit/s
Hurry! only 276 items left in stock.
$460.01
Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Key Features:

  • PCI Express Ethernet
  • 2000 Mbit/s 10/100/1000BaseT(X)
  • Internal Chipset: RTL8111E

Product Description:

Add 4 Gigabit Power over Ethernet ports to a PCI Express-enabled computerThe ST4000PEXPSE 4-Port PoE NIC lets you add four Gigabit Power over Ethernet ports through a single PCI Express slot. Each port can provide up to 25.5W of power, combining network data and power over a single Ethernet cable for reduced cable clutter and added convenience for remote PoE devices.The PCI express PoE card supports the IEEE 802.3at (Type 1 and 2) standard for Power Sourcing Equipment (PSE), and can deliver up to 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and data connection for PoE devices such as IP cameras, IP phones or wireless access points.Suitable for any standard profile PCIe-enabled client, server or workstation, the PoE network card supports features such as Jumbo Frames (up to 9KB), VLAN tagging and Wake on LAN (WoL).Backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage- Position your network devices where power outlets aren’t available, with 25.5 Watts per-port PoE output- Reduce expenses by using existing standard Cat5 (or better) Ethernet cabling to deliver power and data- Optimize network traffic with support for advanced features, like Jumbo Frames and VLAN tagging

Brand: StarTech.com

Model: ST4000PEXPSE

Startech Com
: ST4000PEXPSE
: 276 Items
Hurry! only 276 items left in stock.

Data sheet

Interface
Ethernet
Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-40 - 75 °C
Connectivity technology
Wired
Ethernet LAN
Yes
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Prof...
Certification
CE, FCC, REACH, TAA
Maximum data transfer rate
2000 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Cabling technology
10/100/1000BaseT(X)
LED indicators
Link, PoE
Ethernet LAN (RJ-45) ports
4
Linux operating systems supported
Yes
Server operating systems supported
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Output voltage
48 V
Internal
Yes
Host interface
PCI Express
Full duplex
Yes
Chipset
RTL8111E
Jumbo frames support
Yes
Jumbo frames
9000
Wake-on-LAN ready
Yes
Auto MDIX IEEE
Yes
PCI Card form factor
Full-height

Specific References

UPC
065030855150
EAN13
0065030855150
