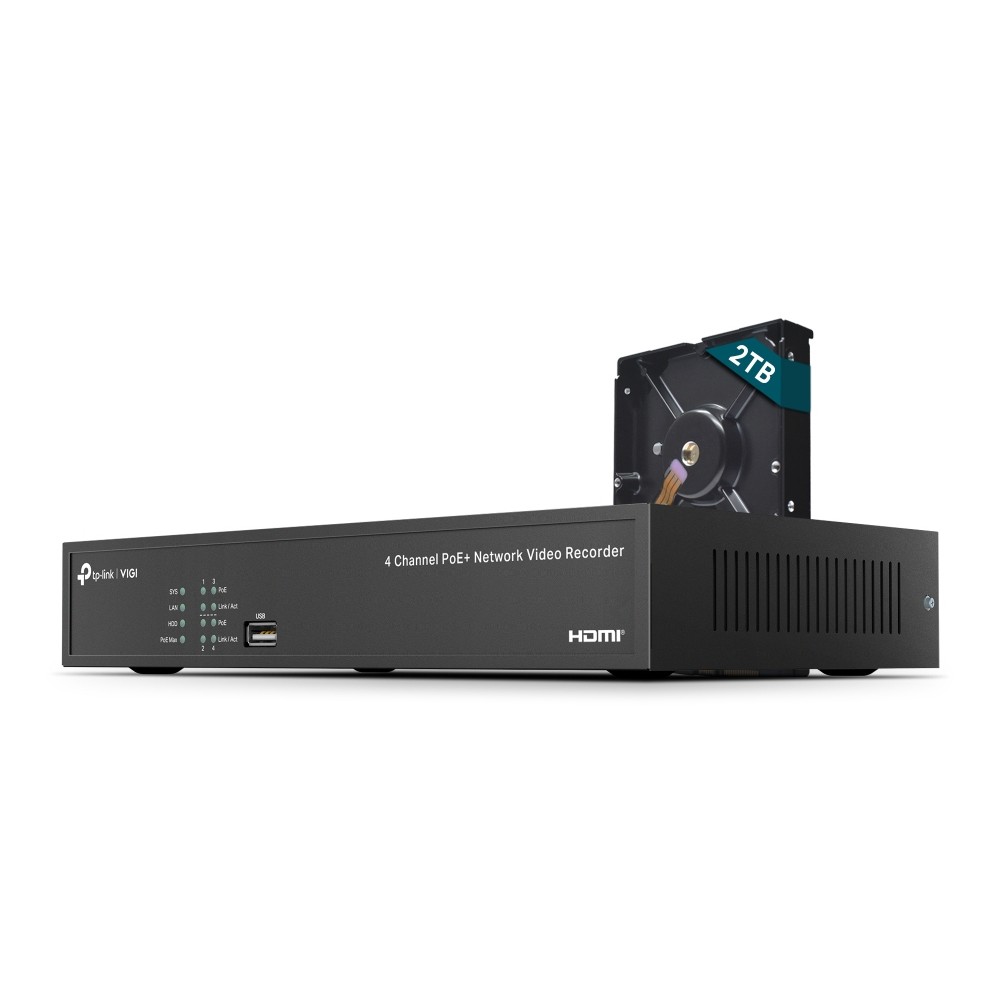

TP-Link VIGI NVR1004H-4P-2TB Black

TP-Link VIGI NVR1004H-4P-2TB Black

VIGI NVR1004H-4P-2TB
TP-Link VIGI NVR1004H-4P-2TB. Video input channels: 4 channels, Maximum resolution: 3840 x 2160 pixels, Video recording modes: 720p, 1080p, 2160p. HDD capacity: 2 TB, Maximum storage capacity: 10 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100 Mbit/s, Supported network protocols: TCP/IP, DHCP, DNS, NTP, UPnP. Product colour: Black. Power consumption (typical): 4.25 W, Output current: 1.31 A, Output voltage: 53.5 V
Hurry! only 3 items left in stock.
$260.10
Quantity

Last items in stock
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Key Features:

  • Video input channels: 4 channels
  • 3840 x 2160 pixels
  • Input bandwidth: 80 Mbit/s Output bandwidth: 60 Mbit/s
  • Number of HDDs installed: 1 HDD capacity: 2 TB Maximum storage capacity: 10 TB HDD interface: SATA
  • Ethernet LAN (RJ-45) ports: 1 Power over Ethernet (PoE)
  • 4-Channel Live View and 4K HDMI Video Output
  • 4× 10/100 Mbps PoE+ Ports with 53 W PoE Budget△

Product Description:

Security Never Shuts DownVIGI NVR1004H-4P 4 Channel PoE Network Video RecorderEvery angle all on one screen.4K HDMI Video Output & 16MP Decoding CapacitySharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle.Dedicated 4 PoE+ ports (53 W budget) for simplified IP camera deployment .Features 4× 10/100Mbps PoE+ ports, the NVR supports up to 30 W on each PoE+ port. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions.Reviewing footage is faster than ever.4-Channel Simultaneous PlaybackReplay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.More compression. More savings. Same quality.Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.No need to check long compatibility lists.ONVIF Ensures CompatibilityEasily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.Plug & Play.Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.Security for every hour and every day.24/7 Continuous RecordingStores up to 10 TB of footage from managed cameras to secure your data for quick, convenient access.Keep an eye on things even when you are on the move.Remote MonitoringThe dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.Greet your visitors before they enter.Two-Way AudioWith voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.Higher bandwidth for high-definition cameras.80 Mbps Video Access BandwidthHigh video access bandwidth ensures your NVR manages cameras with high resolutions. Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to four HD cameras.One system. Full security.Run your business with peace of mind.The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Brand: TP-Link

Model: VIGI NVR1004H-4P-2TB

Tp Link
: VIGI NVR1004H-4P-2TB
: 3 Items
Hurry! only 3 items left in stock.

Data sheet

Maximum resolution
3840 x 2160 pixels
USB 2.0 ports quantity
2
HDD capacity
2 TB
Ethernet LAN data rates
10,100 Mbit/s
Supported resolutions
3840x2160,1920x1080, 1680x1050, 1440x900, 1280x1024, 1024x768, 1280x720
Wi-Fi
No
Ethernet LAN (RJ-45) ports
1
Supported network protocols
TCP/IP, DHCP, DNS, NTP, UPnP
HDMI ports quantity
1
Number of HDDs supported
1
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
4
HDMI output
Yes
Resolution at capture speed
1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
Number of HDDs installed
1
HDD interface
SATA
Video formats supported
H.264, H.264+, H.265, H.265+
Video input channels
4 channels
Video recording modes
720p, 1080p, 2160p
Input bandwidth
80 Mbit/s
Output bandwidth
60 Mbit/s
Maximum storage capacity
10 TB
VGA (D-Sub) output ports
1
Audio RCA inputs
1
Audio RCA outputs
1

Specific References

UPC
840030712258
EAN13
0840030712258
