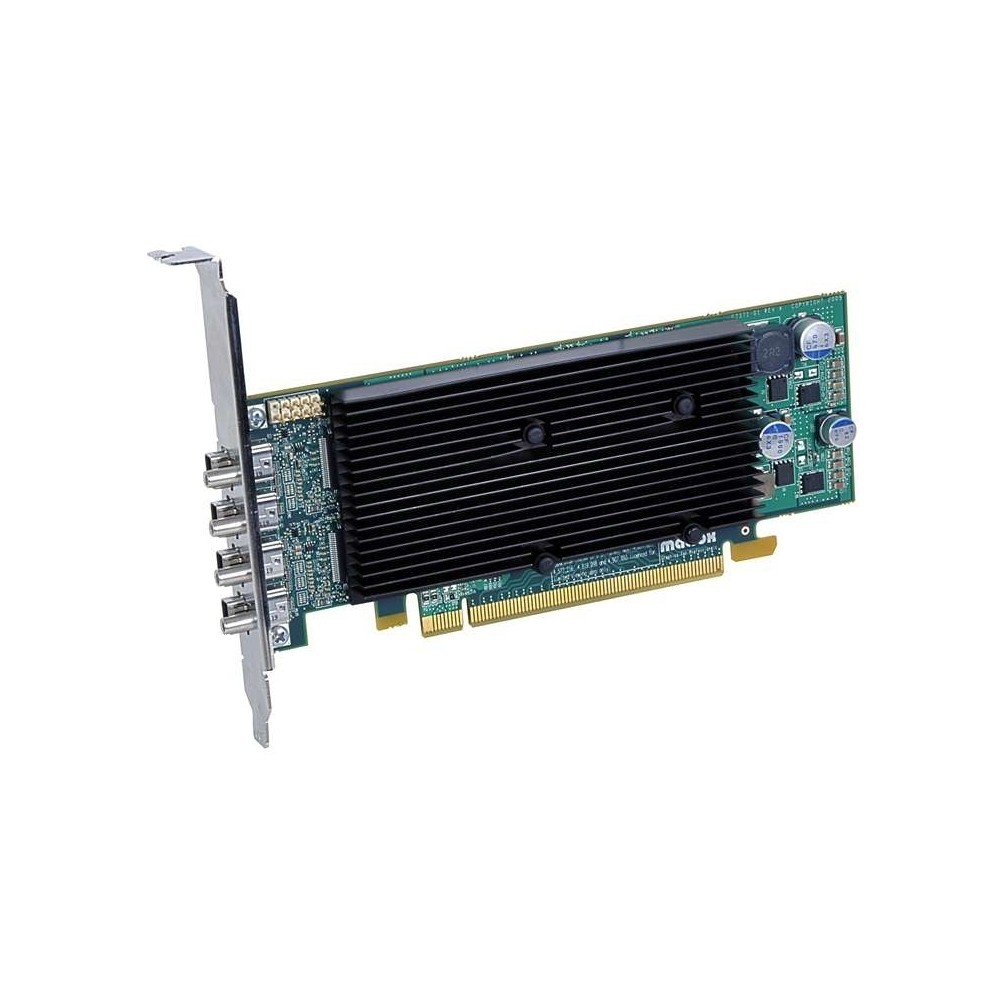

Matrox M9148 LP PCIe x16 1 GB GDDR2

Name: Matrox M9148 LP PCIe x16 1 GB GDDR2
Brand: Matrox
SKU: M9148-E1024LAF
Price: 843.13 CAD
Availability: InStock

Brand :

Reference : M9148-E1024LAF

Matrox M9148 LP PCIe x16. Graphics processor family: Matrox, Graphics processor: M9148. Discrete graphics card memory: 1 GB, Graphics card memory type: GDDR2, Memory bus: 128 bit. Maximum resolution: 2560 x 1600 pixels. OpenGL version: 2.0. Interface type: PCI Express x16. Cooling type: Passive

Hurry! only 10 items left in stock.

$843.13

Quantity

Add to Compare

Add to Wishlist

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Key Features:

Matrox M9148 1 GB GDDR2
2560 x 1600 pixels 128 bit PCI Express x16
OpenGL version: 2.0
High-resolution four DisplayPort monitor support: Support resolutions up to 2560x1600 per output
Native PCI express x16 performance: Maximum bandwidth to ensure best performance
1 GB of memory: For enhanced performance in demanding multi-monitor applications
Low-profile form factor: To fit in a wide variety of systems; includes bracket for full-height ATX form factor
Passive cooling and low power consumption: Fanless design eliminates noise and increases product reliability

Product Description:

Drive Multi-Display Applications with Extraordinary Performance.The Matrox M9148 LP PCIe x16 QuadHead graphics card renders pristine image quality on up to four DisplayPort monitors at resolutions up to 2560 x 1600 per output for an exceptional multi-monitor user experience. With 1 GB of memory and advanced desktop management features, the M9148 LP PCIe x16 card supports both independent or stretched desktop modes and drives business, industrial, and government applications with extraordinary performance. Its low-profile form factor makes it easy to integrate into a wide variety of systems, it offers optimal Windows Vista Aero support (WDDM mode), and can be paired with another M9148 graphics card to support up to eight DisplayPort monitors from a single system.Hardware IncludedMatrox M9148 LP PCIe x16 graphics cardLP bracketFour miniDP to DP adaptersFour DP to DVI connector adaptersSoftware IncludedMatrox display drivers for Microsoft Windows Vista and XPMatrox PowerDesk desktop management software

Brand: Matrox

Model: M9148-E1024LAF

Brand Matrox

Reference : M9148-E1024LAF

In stock : 10 Items

Hurry! only 10 items left in stock.

Data sheet

Height: 69 mm
Maximum resolution: 2560 x 1600 pixels
Certification: EMC Certifications: Class B ROHS & WEEE compliant
Depth: 19 mm
Harmonized System (HS) code: 84733020
Cooling type: Passive
Form factor: Half-Height/Half-Length (HH/HL)
Number of processors installed: 1
Mac compatibility: No
Graphics processor family: Matrox
Graphics processor: M9148
Maximum displays per videocard: 4
Discrete graphics card memory: 1 GB
Graphics card memory type: GDDR2
Memory bus: 128 bit
Interface type: PCI Express x16
TV tuner integrated: No
DirectX version: No
OpenGL version: 2.0
Length: 168 mm
Compatible operating systems: Microsoft Windows 7 (32/64bit)*, Microsoft Windows XP (32/64bit), Microsoft Windows Vista (32/64bit)*, Microsoft Windows Server 2003/2008 (32/64bit), Linux see Website for details
I/O ports: On-board Connectors: 4 x Mini DisplayPort Adapters (included): 4 x Mini DisplayPort to DisplayPort 4 x DisplayPort to DVI
