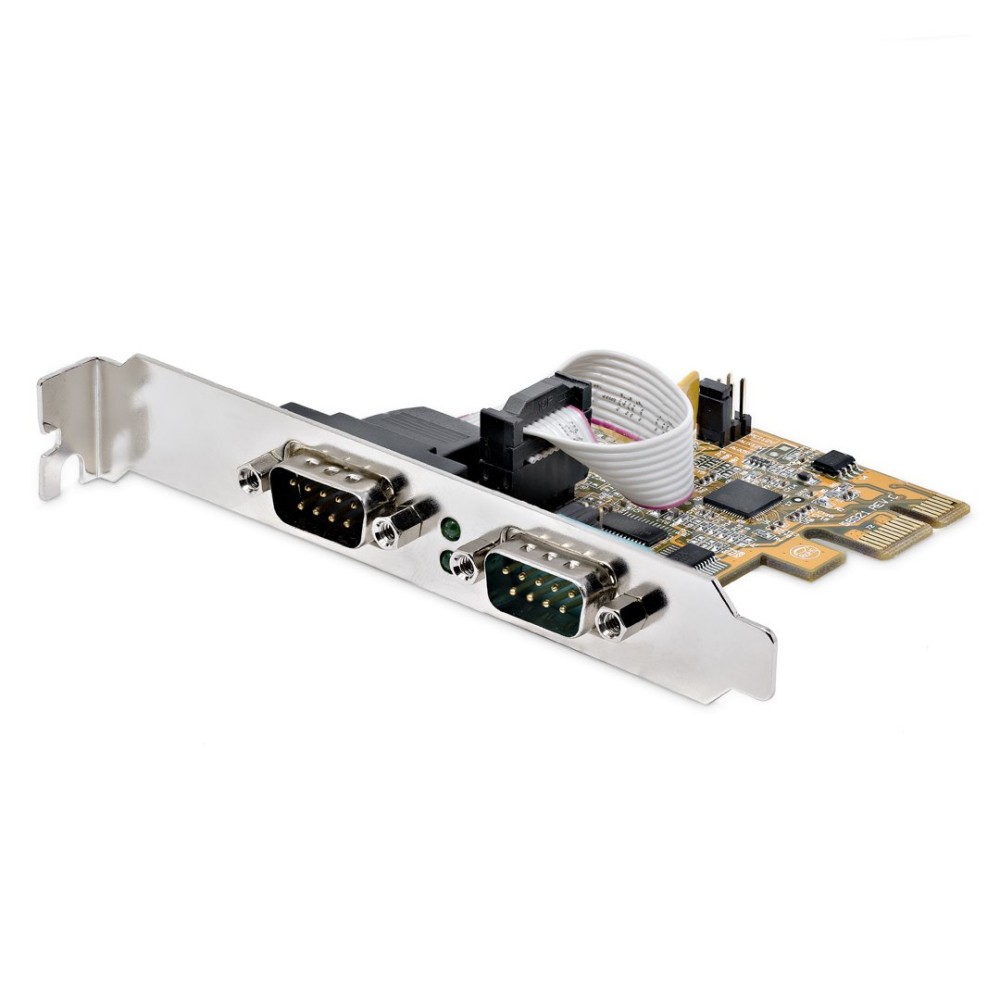

StarTech.com 2-Port PCI Express Serial Interface Card, Dual Port PCIe to RS232 (DB9) Serial Card, 16C1050 UART, Low/Full...

Name: StarTech.com 2-Port PCI Express Serial Interface Card, Dual Port PCIe to RS232 (DB9) Serial Card, 16C1050 UART, Low/Full...
Brand: Startech Com
SKU: 21050-PC-SERIAL-LP
Price: 79.88 CAD
Availability: InStock

Brand : Startech Com

Reference : 21050-PC-SERIAL-LP

StarTech.com 2-Port PCI Express Serial Interface Card, Dual Port PCIe to RS232 (DB9) Serial Card, 16C1050 UART, Low/Full Profile Brackets, COM Retention, For Windows/Linux. Host interface: PCIe, Output interface: Serial, Expansion card form factor: Full-height / Low-profile. Product colour: Yellow, LED indicators: Activity. Chipset: ASIX - AX99100, ASIX - ZT3243LFEY, Baud rate: 921.6 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Server operating systems supported: Windows Server 2016, Windows Server 2019. Width: 66 mm, Depth: 67 mm, Height: 18 mm

Hurry! only 96 items left in stock.

$79.88

Quantity

Add to Compare

Add to Wishlist

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Key Features:

Internal
Host interface: PCIe
Output interface: Serial
Yellow
PCIE TO SERIAL: Connect serial RS232 (DB9) devices to a computer with this low profile PC serial card; Features support for high performance 16C1050 UART on both DB9 male ports; Monitor activity with the built-in LED status lights on the PCI express DB9 card
DEVICE COMPATIBILITY: Use this serial interface card to connect barcode readers/scanners, receipt printers, scales, PLCs, medical devices, etc; The UART PCIe card supplies 5V or 12V power over pin 9; Full-profile bracket included
APPLICATIONS: This card is ideal for IT applications such as server rooms, industrial control/automation, logistics, and laboratories; Continue using legacy hardware with this RS232 PCIe card; DB9 ports accept screw locking serial cables
DUAL SERIAL PORT CARD SPECS: 16C1050 UART, Max Baud 921.6 Kbps per Port, 256 Byte FIFO, COM Retention, Supports Windows/Linux, ASIX AX99100 Chipset, Odd/Even/Mark/Space/None Parity Modes, 5/6/7/8/9 Data Bits, PCIe 2.0 x1, Low-Profile Brackets Installed

Product Description:

Baud Rate 921.6 Kbps per Port | 256-byte FIFO | PCIe 2.0 x1Add serial communication support to a Small Form Factor (SFF) or full-size system, using this two-port serial card. RS-232 (DB9) support enables control and communication with serial peripheral devices.Legacy ConnectivityInstall this card to enable the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications for logistics, manufacturing, and freight sectors, and the IT industry, such as POS equipment, security systems, A/V installations, and more.Connect with EaseThe RS-232 card features dual ports with 16C1050 UART support, 256-byte FIFO (transmit/receive), bi-directional speeds up to 921.6 Kbps per port, low-profile brackets are included for SFF systems, and serial port LED status lights. In addition, it supports Windows and Linux systems for maximum compatibility.21050-PC-SERIAL-LP is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage

Brand: StarTech.com

Model: 21050-PC-SERIAL-LP

Brand Startech Com

Reference : 21050-PC-SERIAL-LP

In stock : 96 Items

Hurry! only 96 items left in stock.

Data sheet

Width: 66 mm
Height: 18 mm
Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 5 - 95%
Product colour: Yellow
Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Wind...
Depth: 67 mm
Weight: 160 g
LED indicators: Activity
Serial ports quantity: 2
Serial interface type: RS-232
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2016, Windows Server 2019
Internal: Yes
Host interface: PCIe
Chipset: ASIX - AX99100, ASIX - ZT3243LFEY
Baud rate: 921.6 Kbit/s
Output interface: Serial
Data bits: 5, 6, 7, 8, 9
Parity bit: Even, Mark, No, Odd, Space
Expansion card form factor: Full-height / Low-profile
Expansion card standard: PCI 2.0
FIFO (First In, First Out): 256 B
Mounting brackets included: Yes
