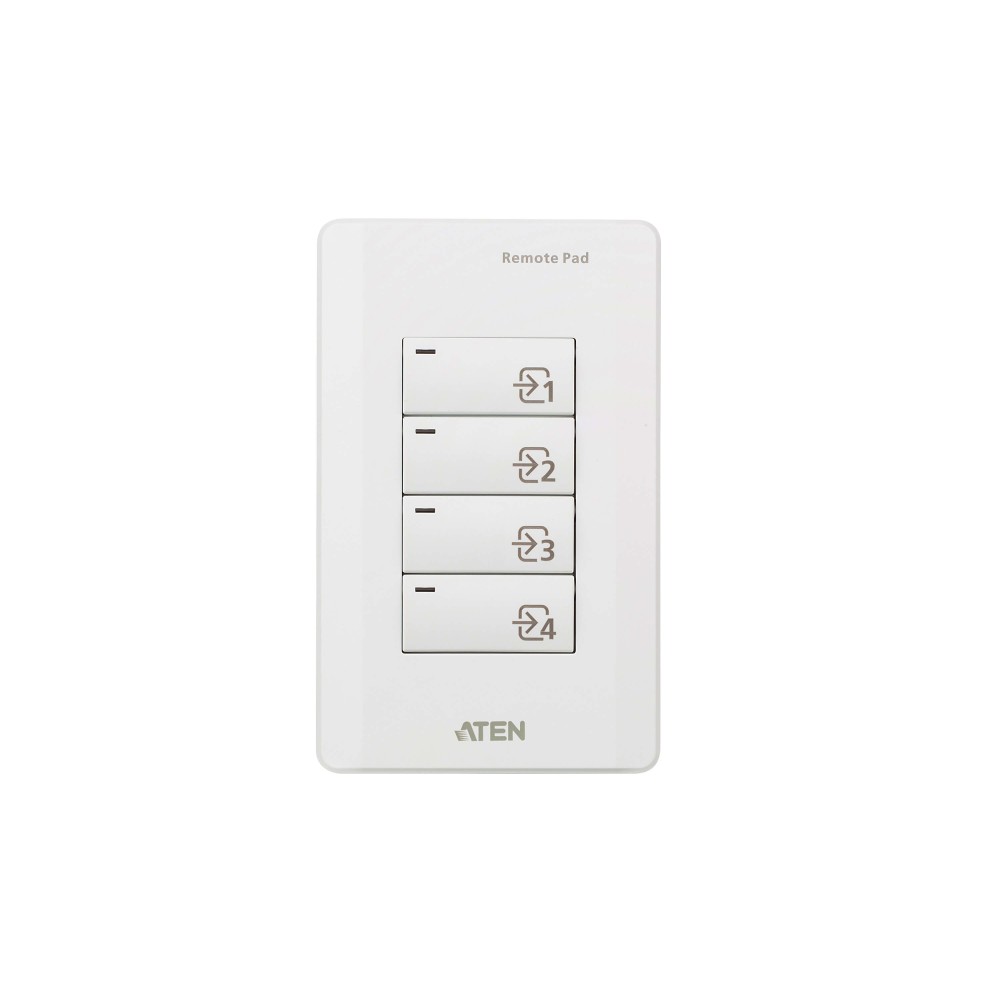

ATEN 4-Key Contact Closure Remote Pad

ATEN 4-Key Contact Closure Remote Pad

VPK104-AT
ATEN 4-Key Contact Closure Remote Pad. Product type: Remote control, Product colour: White, Compatible products: Aten VP1420/VP1421. Connectivity technology: Wired. Width: 116.3 mm, Depth: 70.6 mm, Height: 47.8 mm. Products per master (outer) case: 5 pc(s), Master (outer) case gross weight: 1.8 kg, Master (outer) case length: 325 mm. Package width: 59 mm, Package depth: 239 mm, Package height: 160 mm
Hurry! only 10 items left in stock.
$72.37
Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Key Features:

  • Remote control White
  • Housing material: Plastic
  • 4-button contact closure remote control pad for ATEN VP1420/VP1421 Presentation Matrix Switches
  • Easy connection via contact closure; no extra power source required
  • 4-pole captive screw connectors for ease of installation
  • LED lights for port selection status indication
  • Engraved buttons for intuitive port indication and operation

Product Description:

The VPK104 is a 4-button contact closure remote pad designed for use with VP1420/VP1421 Presentation Matrix Switch. By connecting the contact closure ports between the remote pad and a presentation switch, the VPK104 provides a convenient interface to switch the input sources for a video presentation switch from a wall-mounted faceplate. The VPK104 is an easy and affordable solution, perfect to serve as the control interface in a meeting room, class room, or lecture room.

Brand: ATEN

Model: VPK104-AT

Aten
: VPK104-AT
: 10 Items
Hurry! only 10 items left in stock.

Data sheet

Width
116.3 mm
Height
47.8 mm
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Connectivity technology
Wired
Product colour
White
Depth
70.6 mm
Package weight
290 g
Harmonized System (HS) code
85299097
Housing material
Plastic
Weight
140 g
Package width
59 mm
Package depth
239 mm
Compatible products
Aten VP1420/VP1421
Package height
160 mm
LED indicators
Yes
Storage relative humidity (H-H)
0 - 80%
Product type
Remote control
Products per master (outer) case
5 pc(s)
Master (outer) case width
250 mm
Master (outer) case length
325 mm
Master (outer) case height
175 mm
Master (outer) case gross weight
1.8 kg
Master (outer) case net weight
700 g

Specific References

UPC
672792011337
EAN13
0672792011337
